STL LightShow March 2018

We hosted our first STL LightShow event over March 6-7, 2018 in Toronto, at The Latvian Centre. The event saw over 100 top architects, designers and engineers gather to view innovative and sought-after indoor and outdoor lighting fixtures. Our guests were introduced to representatives and products from: LedraBrands (Bruck, Alphabet, Molto Luce), Rebelle, Current by GE, Lumascape, Metalumen, Modern Forms, Tempo, Senso and Cyclone.

Over two days, attendees networked with colleagues and peers, took in an educational presentation for LC points, enjoyed a local jazz band and fantastic eats during the reception and were invited to enter raffle draws. The Grand Prize was a trip for two to LIGHTFAIR International in Chicago, including round-trip airfare and three-night hotel-stay. Upon arrival, guests were met by STL and invited to peruse the indoor and outdoor lighting displays and speak to manufacturer representatives.

See you at the next STL LightShow!

Raffle Draw Winners

GRAND PRIZE: Trip for 2 to LightFair

Cam Corbet, Angus Lighting

Golf Foursome at Bond Head

Kim Sommers, Blackwell

Day out at St Anne's Spa

Daniel Tran, Hammerschlag & Joffe

$100 Cadillac Fairview Mall Gift Cards

Jiong Wu, Hammerschlag & Joffe

Steve Godfrey, Robertson Electric

Sponsored Draws:

Current by GE - Google Home

Steve Duff, Crossey

Modern Forms - Black Dove 18" LED Gooseneck Desk Lamp

Paul McNeil, BRADCO Electrical

Metalumen - 2 Tickets to TFC Game

Stephen Kaye, Mulvey & Banani International

Tempo - Sponsored Grab Bag

(Includes Personal Wireless Speaker, Water Botle and Notebook)

Paul Boken, Mulvey & Banani International

Rebelle - British Columbia Basket

Heather Cosh, Robertson Electric

Senso Lighting - FitBit

Jesse Fannell, The HIDI Group

Surprise gift from STL for all who did not win a draw!

Starbucks Gift Card

Your STL Rep will deliver this to you very soon.

Want to stay current on STL Lighting news, events and manufacturer updates? Follow us on social media:



STL_LightShow / #STLLightShow

Alphabet's NU STUD - Finally! A Shallow Plenum Downlight...

INTRODUCING ALPHABET'S NU STUD

Do you have an area that has a very shallow clearance above a ceiling?  Still need to have a downlight in that area?  STL Lighting Group has the solution!

Actual IC Enclosure box shown with
both round and square options

Alphabet's NU STUD

• 2-1/4" above the ceiling with an IC enclosure box
• 5/8" standard ceiling thickness - housing height is adjustable for ceiling thickness.
• 1" regress bezel trim – various colour options for trim and bezel
• microstructure lens
• Nichia 219C LED (Standard White)

Use any NU Series downlights or adjustables in conjuntion with STUD where additional plenum is allowed. Appearance is identical to most NU below the ceiling.

Older building? Low clearance?

Pipes in ceiling?

SPECIFICATIONS

Square or Round or Wallwash
Trim or Trimless
Standard White Nichia 219C LED
2700K, 3000K, 3500K, 4000K
80CRI, 90CRI
85° diffused lens
120-277V
Flicker-free dimming
COLOURS - White, Matte Chrome, Black, Bronze, Wheat
Emergency battery backup available

NU4QD STUD Square Downlight - 760-1511 Delivered Lumens

NU4RD STUD Round Downlight - 528-1496 Delivered Lumens

NU4QW STUD Square Wall Wash - 700-1403 Delivered Lumens

NU STUD Shown With Trim

NU STUD Shown Trimless

LISTINGS

ETLus Listed to UL1598

cETL Listed to CSA C22.2 #250.0

Type Non-IC, IC, Airtight ASTM Standard E283

IP65 WET locations, non-conductive dead-front LEXAN™ construction

MOUNTING

New construction housing

Insulation contact housing

Insulation contact/airtight housing

Chicago plenum housing

Interested? Contact STL Lighting Group for this and many other architectural Lighting products.

Information provided in this articla and photos are from ALPHABET LEDRABrands.  STL Lighting Group is a Lighting agency in the GTA in Ontario.

Lighting in Extreme Temps? Wet or Corrosive Location? STL Lighting Group has GE's AH2A!

GE's AH2A - Certified for Hazardous Locations

LIGHTING YOUR HAZARDOUS ENVIRONMENTS

GE'S Albeo™ AH2A LED fixture is an excellent choice for lighting your hazardous locations in demanding environments. Extreme high or low temperatures & wet and/or corrosive locations? the AH2A has a heavy-duty design with exceptional performance & reliability characteristic of Albeo luminaires.

Spec Sheet

AH2A - High Brightness for High Bay Applications

APPLICATIONS

• For adverse, severe duty and hazardous classifications
• Corrosive applications
• Heavy industrial and wet applications

FEATURES

• 5,000 – 18,000 lumens output
• High brightness LED
• 70 CRI
• 4000K & 5000K
• 360°, 180°, or Wide Distribution
• Glass or Polycarbonate options
• L70 ≥ 100,000 hours @ 65°C

CERTIFICATIONS

• UL1598 Wet Location
• UL1598A Outside Type (Saltwater)
• UL844 Listed — Class I Division 2 Groups A, B, C, & D
• Class II Division 1, Groups E, F & G (Pending January 2018)
• Note: Polycarbonate lens is not rated to Class II Division 1
• Class II Division 2, Groups F & G
• Class III Divisions 1 & 2
• Simultaneous Presence (Pending January 2018)
• UL8750 LED Equipment in Lighting Products
• CAN/CSA C22.2 No. 137-M1981 Listed
• NEMA 4X Enclosure Type
• IP66 Ingress Protection Rating
• EMI: Title 47 CFR 15 Class A

PRODUCT DIMENSIONS

Weight: 19lbs max

PHOTOMETRICS

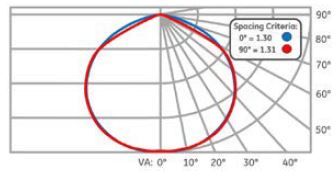

360° Optic

180° Optic



Wide Optic

Like What you see?

Contact STL for a quote or call us at 1-888-712-9901.

*Content of this page is based on material shared by CURRENT Powered by GE and uses their images and charts.

VLT Makes Backlighting Easy - No matter the size or shape!

Have you ever been asked to find some way to backlight a custom shape or very large surface? We have products that fit your every need.

VLT's EssentialLED's LED Light Panel produces backlighting that is bright and even, without visible grids or fade-off in the center, even when backlighting very large areas!

• Needs only 2" of cavity space.
• Custom size/shape, including cut-outs for sprinklers, duct work, etc.
• Easy to install! Arrives ready to mount.
• Nine static CCTs plus tunable white.
• Ideal for acrylic, onyx and other translucent materials
• Beautifully backlights stretched fabric ceilings.

Bright, edge-to-edge illumination for "skylight effect" stretched fabric ceilings

Available in two very useful versions: ELP-L and ELP-G.

ELP-L Light Panel

• Made with linear LED modules placed on a light weight expanded PVC substrate.
• Can be fabricated in any size or shape up to 120"x60"- Great for unique applications like up-lighting an onyx countertop, or backlighting an odd-shaped wall area.
• Wall-mount installation is easy with clearly-marked pre-drilled mounting holes.
• Use as a general lighting source when combined with T-Bar or suspension hardware.

ELP-G Light Panel

• Highly efficient light source (140 lumens/watt) that was specially engineered to illuminate highly translucent stretched fabric ceiling materials such as Newmat or Barrisol.
• LEDs in a tight grid pattern to produce extremely even backlighting.
• Diffuse behind ceiling materials in 5” or less, and can also be used to backlight other materials where cavity space is extremely limited.

Interested? Contact STL Lighting Group for this and many other architectural Lighting products.

Information provided in this articla and photos are from VLT Visual Lighting Technologies.  STL Lighting Group is a Lighting agency in the GTA in Ontario.

STL Lighting Group: Your source for Lighting projects in 2018

Updated January 23, 2019

Let STL Lighting Group be your source for Lighting projects in 2018. Our commitment to our customers: STL Lighting Group will provide superior brands and services. We will support you from sourcing through installation to ensure seamless product integration into any project. Your STL Lighting Group contacts are listed below. Steve Takacs, Principal  1-888-712-9901 Ext. 6  steve@stllighting.com MAIN OFFICE  1-888-712-9901 or 519-620-9135 www.stllighting.com ORDERS - orders@stllighting.com SALES - sales@stllighting.com Tricia Besserer, Account Manager 1-888-712-9901 Ext. 4 Cell: 647-272-0141 tricia@stllighting.com Forrest Jones, Account Manager 1-888-712-9901 Ext. 8 Cell: 905-251-3564 forrest@stllighting.com Andrew Smith, Account Manager 1-888-712-9901 Ext. 5 Cell: 437-990-7295 andrew@stllighting.com QUOTES - quotes@stllighting.com Romi Pop - 1-888-712-9901 Ext. 1 quotes@stllighting.com Trevor Bierema - 1-888-712-9901 Ext. 7 trevor@stllighting.com CUSTOMER SERVICE  Courtney Beatty - 1-888-712-9901 Ext. 2 orders@stllighting.com Amanda Adamson - 1-888-712-9901 Ext: 3 info@stllighting.com Check out our website at www.stllighting.com Follow us on Social Media:

The Zynn Series - Zynn Lines from SPI Lighting

1.25" cross-section | Seamless construction | Direct or Indirect

Minimalism Refined

Want to keep things light and in tune with your contemporary spaces? The slim lines of SPI Lighting's ZYNN LINES fixture and it's energized cables is key to making your design light and airy feeling while remaining relevant.

Suspend slim lines of light in contemporary spaces with Zynn Lines. This minimalist luminaire differentiates itself with its seamless housing, energized cables and refined finish.

A fundamental design tool for today's architects and designers, Zynn Lines' small scale makes a modern statement.

Applications

• hang as a single pendant
• hang as a single pendant
• align in rows
• create patterns
• arrange in a cluster

Features & Benefits

• Slim, 1.25" cross-section
• Available in 4' and 8' lengths
• Choose from direct or indirect distributions
• Evenly-illuminated acrylic frosted lens is flush with metal housing
• Aluminum housing is seamless with no visible fasteners
• Exceptionally clean visual appearance from all angles
• Go cordless with 1mm energized cables or maximize efficacy with power cord mounting

Specifications

Spec Sheets

8ft - Direct

8ft - Indirect

4ft - Direct

4ft - Indirect

Mounting

The four-foot pendant has mounting points located just off the ends of the fixture, while the eight-foot pendant has mounting points located on four-foot centers. This maximizes the stability of the fixture either as a standalone piece or linear run.

Want More Information?

Contact your STL rep or call us at 1-888-712-9901.

*Content of this page is based on material shared by SPI Lighting and uses their images and charts.

The Zynn series - Zynn Metal Ring from SPI Lighting

1.25" cross section | Seamless construction | Energized cables

At STL Lighting Group, we are always on the look out for new, quality designs that are different than what is currently in the marketplace before. Do you want that unique look for your room? The Zynn Metal Ring from SPI Lighting is a stunning accent in contemporary spaces.

Minimalism refined

Designed with meticulous attention to detail, it provides a comfortable source of brightness while delivering functional light.

The alluminum housing is continuous...no seam! With a matte opal diffuser you'll experience an exceptionally clean visual appearance from all angles.

No cords needed to spoil the view -- the Zynn Metal Ring has 1mm energized cables, or choose a power cord to maximize efficacy.

These may be hung in a cluster or as a single pendant.

Applications

• offices
• hospitality venues
• any space where it needs to be more intimate

Product Overview

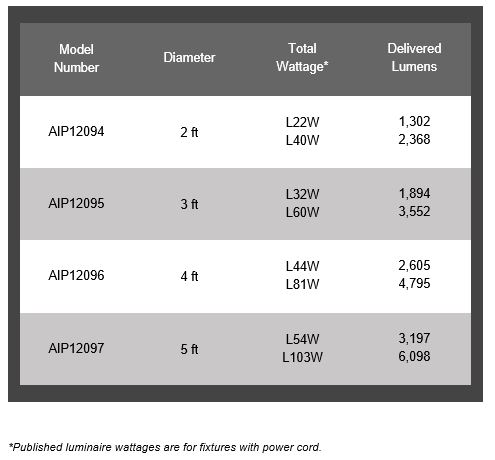

The Zynn Metal Ring is available in many sizes, starting at 2 feet in diameter. Larger sizes are avialabler - contact your STL rep for information.

Specifications

Spec Sheets

24" Ring

36" Ring

48" Ring

60" Ring

Want More Information?

Contact your STL rep or call us at 1-888-712-9901.


*Content of this page is based on material shared by SPI Lighting and uses their images and charts.
